What are the differences between Overcurrent Protection, Ground Fault Circuit Interrupter, and Ground Fault Equipment Protection?


Overcurrent, Ground Fault Circuit Interrupter (GFCI), and Ground Fault Equipment Protection (GFEP) are all types of electrical protection equipment mechanisms, but they serve different purposes and operate in distinct ways. Here’s an explanation of each and their differences:


1. Overcurrent Protection:

Purpose: Protects electrical circuits from excessive current that can cause overheating, fires, or damage to equipment.

Mechanism:

• Circuit Breakers: Automatically open the circuit when current exceeds a predefined limit.

• Fuses: Melt and open the circuit when current exceeds a certain level, requiring replacement after activation.

• Usage: Essential in every electrical circuit to prevent damage from short circuits and overloads.



2. Ground Fault Circuit Interrupter (GFCI):

Purpose: Protects people from electric shock by detecting ground faults and interrupting the circuit quickly.

Mechanism:

• Monitors the difference between the hot and neutral wires.

• If an imbalance (ground fault) is detected, indicating current is flowing through an unintended path (such as a person), it trips the circuit.

Usage: Commonly used in areas where there is a higher risk of electric shock, such as bathrooms, kitchens, outdoor outlets, and other wet locations.



3. Ground Fault Equipment Protection (GFEP):

Purpose: Protects equipment from ground faults by detecting low levels of ground fault currents and interrupting the circuit to prevent equipment damage.

Mechanism:

•  Similar to GFCI but typically set to trip at a higher current level.

•  Designed to protect equipment rather than people, focusing on preventing damage to electrical systems and machinery.

Usage: Often used in industrial settings, data centers, and for specific equipment where ground fault currents might damage sensitive machinery or systems.



Key Differences:

1. Protection Focus:

•  Overcurrent: Protects circuits from excessive current (short circuits and overloads).

•  GFCI: Protects people from electric shocks by detecting ground faults.

•  GFEP: Protects equipment from ground faults, typically at higher thresholds than GFCIs.

2. Detection Mechanism:

•  Overcurrent: Trips based on current exceeding a predefined limit.

•  GFCI: Trips based on an imbalance between hot and neutral wires indicating a ground fault.

•  GFEP: Trips based on ground fault currents but at higher thresholds than GFCIs.

3. Typical Usage:

•  Overcurrent: Used in all electrical circuits to prevent overheating and fires.

•  GFCI: Used in high-risk areas for personal safety.

•  GFEP: Used to protect sensitive equipment in commercial or industrial environments.

•  Understanding the differences in these protection equipment are crucial for ensuring proper electrical safety and protection in various settings.

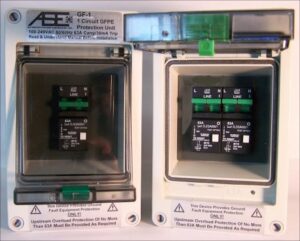

Protection equipment: Ground Fault Circuit Interrupters (GFCI)
