What is the correct DCM-PRO cable spacing?


Maintaining Proper DCM-PRO Cable Spacing

When loose-laying the DCM-PRO cable on the floor, maintain a consistent cable spacing of no less than 3” and no more than 4”.

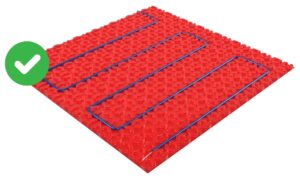

Correct Spacing

First, uniform consistent spacing is essential for even heating throughout your space. Ensure that the minimum bending radius is no less than 1” for the heating cable.

Below is the formula for calculating your DCM-PRO spacing. This formula is based on the heated square footage of your room and the heating system you are installing. To start, insert values to complete the calculation.

DCM-PRO Cable Spacing Formula:

On Center Spacing (OCS) = (Area (sqft) * 12) / Length (ft).

For further guidance on DCM-PRO Cable Spacing, consult the installation manual.
