Check the Resistance Readings of your Electric Floor Heating System
To ensure that your floor heating system will function properly, always test the resistance readings of your wires with a digital multimeter before, during, and after installation.
Use the information contained in the installation manual for details. If at any point during one of your tests, the resistance results do not match up, call the Warmup Technical Department. Watch our video specifically including information on testing.
Warmup can provide your installer with the tools needed to perform a repair when possible.

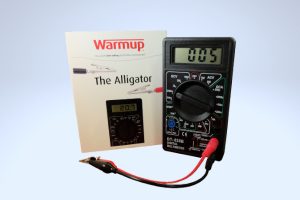

If you purchased a Digital Multimeter from Warmup, you will have 2 connectors. Please make sure that the contacts that will be plugged into the multimeter are properly exposed.
Connect the red clip to the outlet labeled “VΩmA” and the black connector to the “COM” outlet. Turn the dial so that the indicator points to the 6 o’clock position, directly above the “200Ω” indicator.
TESTING RESISTANCE FOR 120V/240 SYSTEMS
IMPORTANT NOTE: Perform the testing below before connecting the heating system to a power source or only after disconnecting if already installed.
1. You will take your readings 3 times.
- Once you first remove your heating system from the box
- mid-way through the laying out of the floor heating system
- right before you connect the floor heating system to the thermostat.
2. Clip the alligator head of the black connector to the black wire of your heating system. Then connect the alligator head of the red connector to the yellow (120V) / red (240V) wire. This is your “core to core” reading. Compare the ohm number that appears on the display to what the tag, box, or installation manual states the reading should be for the model you purchased. Note: +/- 5% of the norm is acceptable.
3. Next clip the alligator head of the black connector to the black wire of the floor heating system and the alligator head of the red connector to the yellow/green or braided wire (ground). You want to see the number “1” or the “infinity symbol – ∞.”. Now you will leave the red wire connected to the yellow/green wire but this time clip the black connector to the yellow wire of the floor heating system. Again, you want to see the number “1” or the infinity symbol.
If your results deviate in any way from the results indicated above call Warmup immediately for further instructions.
