What gauge wire should be used for the SIT-6E?
12 AWG or 18 AWG should be used depending on the distance from the controller. Click “Read More” for details.
What gauge wire should be used for the SIT-6E? Read More »
questions
What gauge wire should be used for the GIT-1?
12 AWG or 18 AWG depending on the distance from the controller. Click “Read More” for details.
What gauge wire should be used for the GIT-1? Read More »
What gauge wire should be used for the CIT-1?
12 AWG or 18 AWG depending on the distance from the controller. Click “Read More” for details.
What gauge wire should be used for the CIT-1? Read More »
What are the electrical requirements for my Warmup system?
Please verify that the circuit can handle the amount of amperage your heating system requires. Your thermostat can only handle up to 15 amps so if you are connecting multiple heaters to one thermostat location, you may need to use a relay and a larger breaker. Your or your electrician can find out the amperage rating of your specific floor heating system in installation manual or printed on the box. Note: Just because the Warmup thermostats are dual voltage, this does not mean you can supply any voltage to your heating system. You must supply the voltage supplied to the voltage of your specific heater.
What are the electrical requirements for my Warmup system? Read More »
What are the amperage capabilities of each Box at each voltage?
The amperage capacity of the Resibox is 120A and for the Commbox it is 230 Amps. The Resibox has (4) of the 30A/2-pole contactors rated 120-277V for a total of maximum 120A load capacity. Click “Read More” for details.
What are the amperage capabilities of each Box at each voltage? Read More »

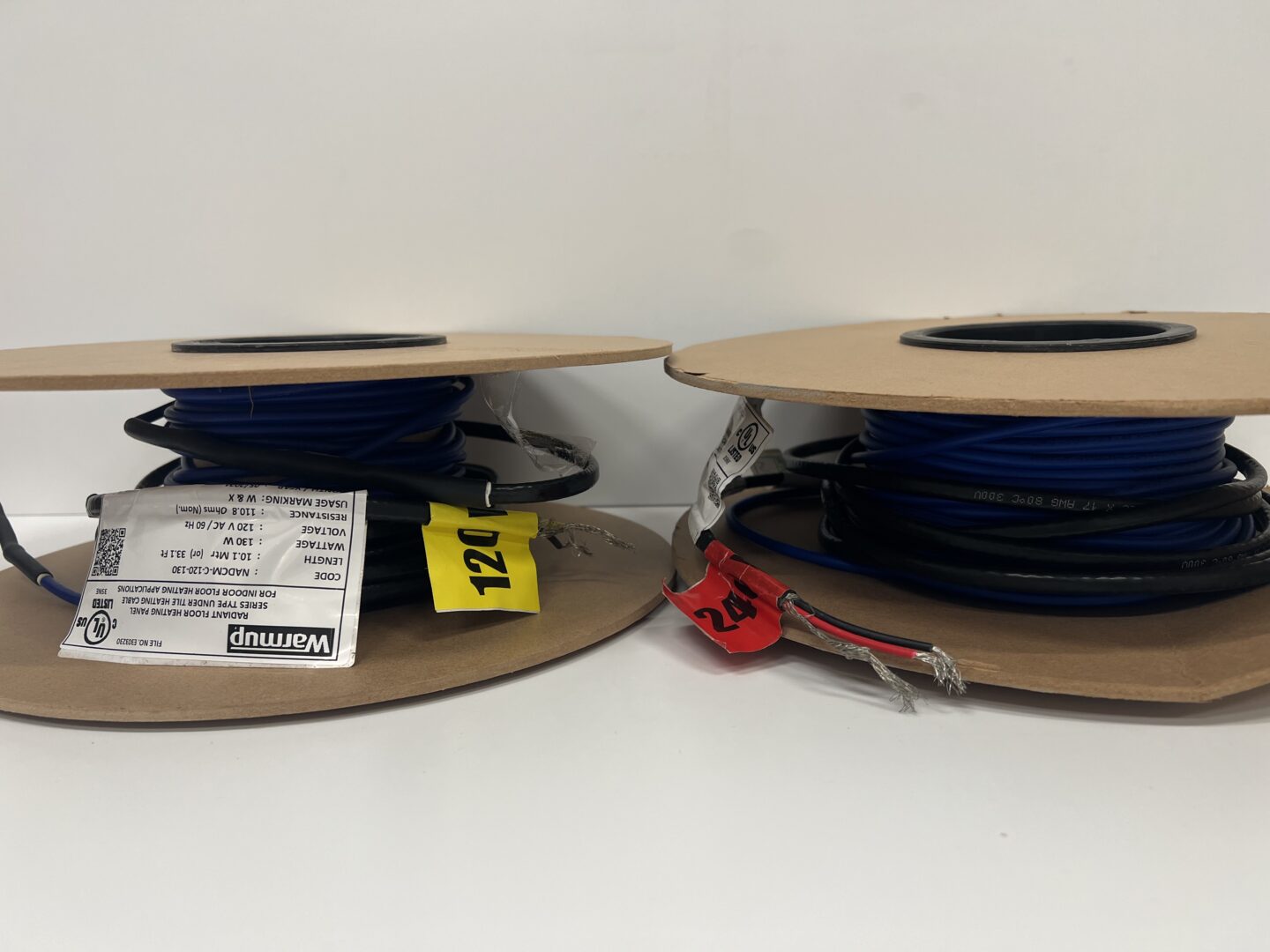

Should I use a 120V or 240V electric floor heating system?
Both 120Vac and 240Vac Warmup heating cable(s) output the same amount of power (wattage) per square foot (13.1 watts), so, the only difference between 120Vac and 240Vac heating cable(s) is the amount (ft2) of heating cable you can attach to one 15A thermostat.
Should I use a 120V or 240V electric floor heating system? Read More »
Is the electric floor heating system wired correctly?
Be safe and follow these important reminders before troubleshooting your floor heating system. Click “Read More” for instructions.
Is the electric floor heating system wired correctly? Read More »
If I have too much mat or cable, can I cut it?
No, you should never shorten the heating wire. Click “Read More” for details.
If I have too much mat or cable, can I cut it? Read More »
