ETOG Wiring

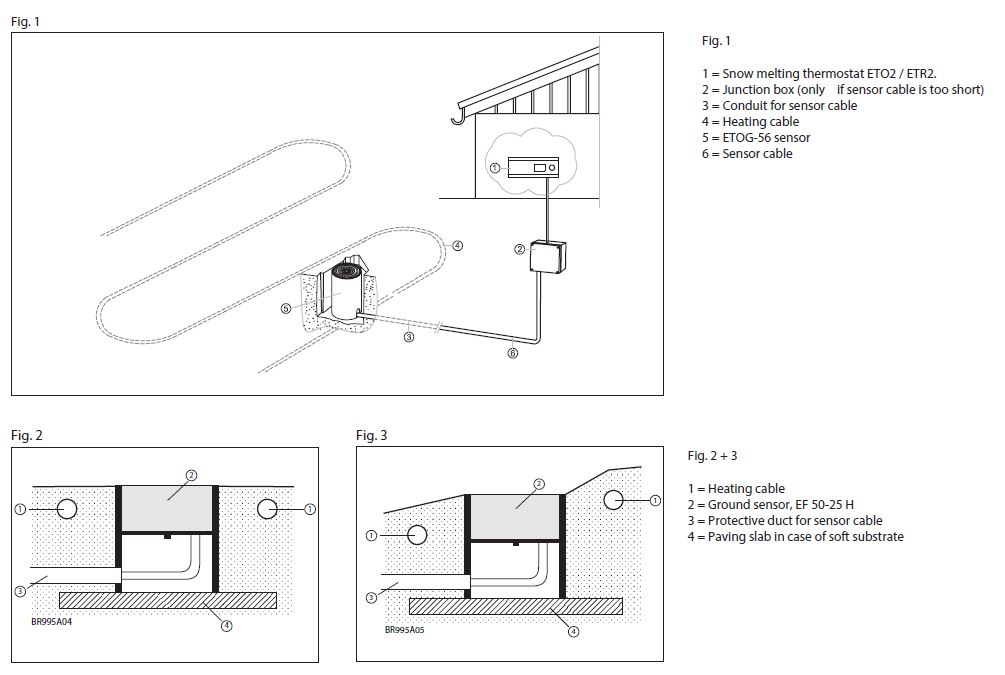

The ETOG will be wired to terminals 11 – 20. Please note diagram below which illustrates how 1 or 2 ground sensors would be wired.

Connect heating cable for zone 1 to output relay 1. Connect heating cable for zone 2 to output relay 2.

ETOG Wiring
